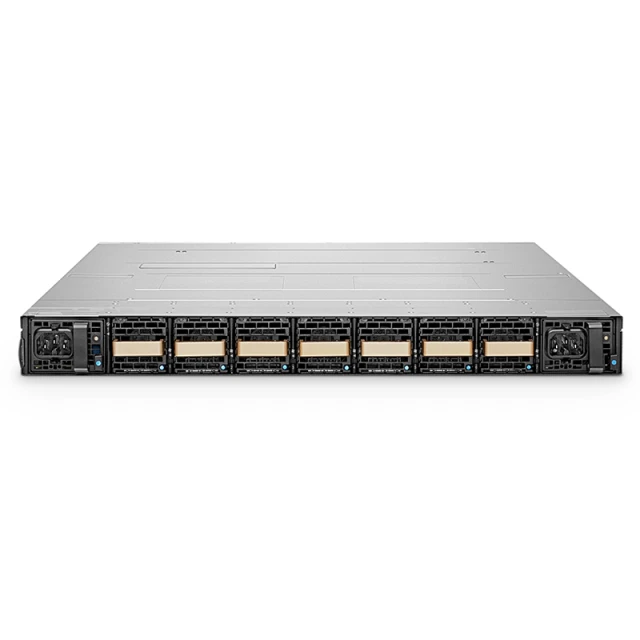

MQM9790-NS2F, NVIDIA® 64-Port NDR 400G InfiniBand Data Center Switch, 32 OSFP Ports, Unmanaged, x86 Dual Core, NVIDIA Quantum™-2 Chip, P2C Airflow

MQM9790-NS2F, NVIDIA® 64-Port NDR 400G InfiniBand Data Center Switch, 32 OSFP Ports, Unmanaged, x86 Dual Core, NVIDIA Quantum™-2 Chip, P2C Airflow

15500000 CFA


 1-Year Warranty


Product Highlights

32 OSFP Ports, Can Use Breakout for 64× 400GbE or 128× 200GbE
25.6 Tb/s Aggregate Switch Throughput, More Than 66.5 Billion Packets per Second
1+1 Hot-swappable Power Supplies, 6+1 Hot-swappable Fans
Support SHARPV3, Adaptive Routing, Congestion Control and QoS, Self-healing Networking
Support Fat Tree, SlimFly, Dragonfly+, Multi-dimensional and Other Network Topologies
Support UFM® Platform for Flexible Operation

MQM9790-NS2F, NVIDIA® 64-Port NDR 400G InfiniBand Data Center Switch, 32 OSFP Ports, Unmanaged, x86 Dual Core, NVIDIA Quantum™-2 Chip, P2C Airflow

The NVIDIA Quantum-2-based MQM9790-NS2F switch comes with 64 400Gb/s ports on 32 physical octal small form-factor pluggable (OSFP) connectors that can be split to deliver up to 128 200Gb/s ports in a 1U standard chassis design. This switch use connector cages that house two 400Gb/s ports in a single cage called 2x400G (800G) twin-port OSFP and are used exclusively in these air-cooled switches. A single switch carries an aggregated bidirectional throughput of 51.2 terabits per second (Tb/s), with a landmark of more than 66.5 billion packets per second (BPPS) capacity.
Supporting the latest NVIDIA high-speed interconnect 400Gb/s technology, NVIDIA Quantum-2 brings a high-speed, extremely low-latency and scalable solution that incorporates state-of-the-art technologies such as Remote Direct Memory Access (RDMA), adaptive routing, and NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)™.

Specifications
Manufacturer
Mellanox
Ports
64 x NDR 400G
32 OSFP Connectors
CPU
x86 Coffee Lake i3
Switch Chip
NVIDIA QUANTUM-2
Software
MLNX-OS
Switching Capacity
25.6 Tbps
Typical Power Consumption
640w
System Memory
Single 8GB
Max. Power Consumption
1593W
Storage
M.2 SSD SATA 16GB 2242 FF
AC Power Supplies
1+1 Hot-swappable
Voltage
1x/2x, 200-240VAC 50/60Hz 10A
Fan Number
6+1 Hot-swappable
Airflow
Back-to-Front（P2C）
Operating Temperature
32°F to 95°F (0° to 35°C)
Storage Temperature
-40°F to 158°F (-40ºC to 70ºC)
Dimensions (Hx Wx D)
1.7"x 17"x 26"(43.6x 438x 660mm)
Rack Units
1 RU

Product Spotlights

High Availability And Multi-Service Support

Overcome link failures and achieves network recovery 5,000X faster than any software-based solution

Quickly resolve network issues due to specific port failures

SHIELD greatly reduces troubleshooting time

Support HDR, NDR and subsequent technologies

On-board Subnet Manager (SM) supporting fabrics of up to 2K nodes

Unified Fabric Manager (UFM) agent


Error-Free Network Configuration

Support NVIDIA Mellanox Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)

Offload collective communication operations from the CPU to the switch network by aggregating large data vectors at wire rate

Accelerate HPC, deep learning algorithm performance

Lowest latency for Inter-GPU communication across nodes


Secure And Simplified Access for Users And IoT

Build networks with MLNX-OS

Enable scaling to thousands of compute and storage nodes

Provide monitoring and provisioning capabilities

Support CLI-based, using console ports

Support WEB UI, using 10/100/1000Mbps management port or service port

Support SNMP (SNMPv1, v2c, v3)

Support JSON
