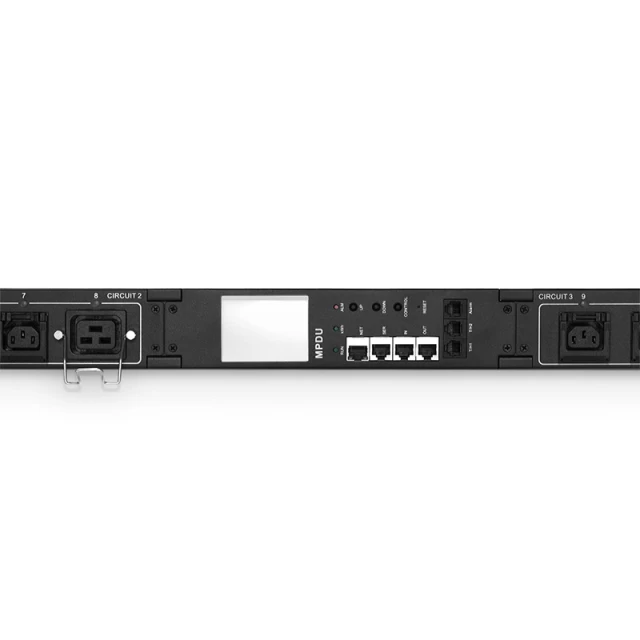

Single-Phase 32A/120V Switched Metered Outlet PDU, (21) C13 & (3) C19 Outlets, IEC309 32A 2P + E Plug, 10ft Cord, 0U Vertical

1300000 CFA

Product Highlights

User-defined Alarm Thresholds Reduce Risk With Real-time Monitoring to Avoid Circuit Overload

1 IP is Required to Access Up to 32 PDUs (Primary + Secondary) in A Single Cascade Group

Plan Capacity and Balance Loads with ± 1% Metering Accuracy (Amps, Volts, Kw, Kwh)

100Mbps Controller is Compatible with Data Center Network Switches Being Deployed

Replace the Controller And Display Module Without Having To Power Down The Rack

Single-Phase 32A/120V Switched Metered Outlet PDU, 21 IEC320 C13 & 3 C19 Outlets, IEC309 32A 2P + E Plug, 10ft Cord, 0U Vertical

A Switched Metered Outlet PDU provides Local/Remote real-time monitoring capability and avoids potential overloads with an LCD hot swapping display while offering reliable, rack-mount, multi-outlet power distribution from any protected UPS, generator, or mains input power source. Users can access, configure, and control the PDU's outlet metering through a secure Web, SNMP, command line interface, or Telnet interface. An optional T/H sensor will be used to set notification forms to prevent business disruption.
Switched PDU models are also available that can provide remote on/off outlet switching functionality from anywhere in the world to drive green data center initiatives to save energy and money.
The 0U rack PDU mounts vertically using the included toolless mounting buttons or the included brackets. Recommended for data centers, server rooms, and network closets, this 0U vertical PDU provides advanced network control and remote power monitoring.

Specifications

PDU Type

Switched Metered Outlet

Phase

Single-Phase

Input Plug Type

IEC309 32A 2P + E

Output Socket Type

21 IEC320 C13 & 3 C19

Input Voltage

230V

Output Voltage

230V

Input Current Limits

63A

Rating Current

32A

Load Capacity

3.84kW

Frequency Compatibility

50/60Hz

Cord Length

10ft (3m)

Cord Gauge

33AWG (3/4.51mm)

Ammeter

LCD Hot Swapping

Circuit Breaker

1, Hydraulic

Front Panel LCD Display

Digital meter reports PDU output current in amps, voltage, capacity, electric energy, temperature and humidity, and IP address information

Network Compatibility

10/100 Ethernet & Gigabit Ethernet Standard

SNMP Compatibility

Supporting Web, Telnet, SSL, SNMPv1/v2c/v3, NTP, SMTP and Zabbix Software for local and remote management

Material of Construction

Sheet Metal

No. of Rack Spaces

Vertical (0U)

Dimensions (HxWxD)

75.79''x2.21''x2.05'' (1925x56x52mm)

Toolless Mounting Peg

Unmovable

Rack Mount Brackets

Removable

Operating Temperature

0°C to 45°C (32°F to 113°F)

Relative Humidity

5~95%

Current Measurement Accuracy (Amps)

±1%

Voltage Measurement Accuracy (Volts)

±1%

Power Measurement Accuracy (Watts)

±1%

Storage Temperature

-15 to 60°C (5°F ~ 140°F)

Quality Certifications
