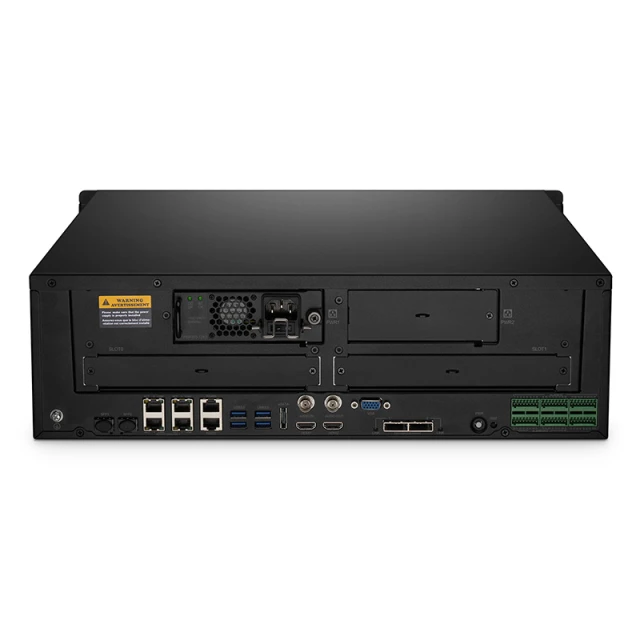

NVR716-128C, 128-Channel Network Video Recorder, Record 128CH 4K@30fps, Live View/Playback 4CH 4K@30fps, Supports up to 16x10TB Hard Drive(Not Included)

NVR716-128C, 128-Channel Network Video Recorder, Record 128CH 4K@30fps, Live View/Playback 4CH 4K@30fps, Supports up to 16x10TB Hard Drive(Not Included)

4544000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Support 128 Cameras and up to 12MP Resolution
Remote Access via Mobile App, Web Browser and VMS (Video Management Software)
ONVIF® Profile S Conformant
HDMI1, HDMI2 and VGA Independent Outputs Provided
Provide Data Redundancy, Automized Secure RAID 0/1/5/6/10/50/60 Configuration

NVR716-128C, 128-Channel Network Video Recorder, Record 128CH 4K@30fps, Live View/Playback 4CH 4K@30fps, Supports up to 16x 10TB Hard Drive (Not Included)

The network video recorder (NVR) can record videos from up to 128 cameras, and the storage can be expanded to 160TB in total for its 16-bay SATA 3.5" HDD interface. A variety of monitoring methods, including a web browser, monitoring software and mobile App, are available to manage your cameras and NVR easily, ideal for small and medium enterprises, education institutions, hotels and other applications. It features an open architecture that supports for multi-user access, enabling interoperability with IP cameras.

Specifications
IP Video Input
128-Channel
Decoding Format
H.265+, H.265, H.264
HDMI Output
4K(3840x2160@30fps),1920x1080@60fps,
1920x1080@50fps,1600x1200@60fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps
VGA Output
1920x1080@60fps,1920x1080@50fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps,1600x 1200@60fps
Audio Input
1-ch, BNC
Audio Output
1-ch, BNC
Incoming Bandwidth
512Mbps
Decoding Capability
4x 12MP@20, 4x 4K@30, 16x 1080p@30, 36x 720p@30, 64x D1
Outgoing Bandwidth
384Mbps
LiveView/Playback Resolution
12MP/8MP/6MP/5MP/4MP/3MP/
1080p/960p/720p/D1/2CIF/CIF
SATA
16x SATA interfaces
Capacity
160TB (not included), up to 10TB for each HDD
Network Interface
4 RJ-45 10M/100M/1000M Adaptive Ethernet Interface
2 1000M SFP Ethernet Interface
USB Interface
4x USB 3.0(Front panel)
Power Consumption
≤ 50W (without HDD)
Power Supply
AC 100-240V
Power Output
12V
Interoperability
ONVIF® Profile S Specification at onvif.org
Dimensions (HxWxD)
5.1"× 18.8"× 19.0" (131× 482× 477mm)
Operating Temperature
-10 to 55°C (14 to 131°F)
Quality Certifications
