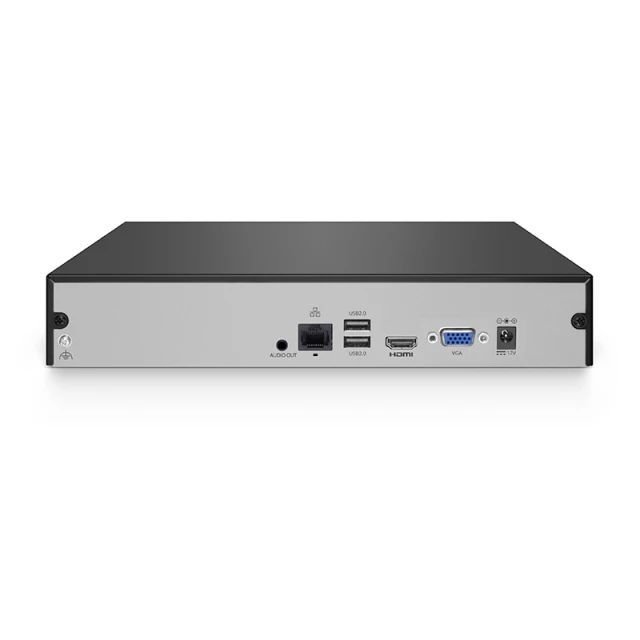

NVR101-8C, 8-Channel Network Video Recorder, Record 8CH 4K@30fps, Live View/Playback 1CH 4K@30fps, Supports up to 1x8TB Hard Drive(Not Included)

NVR101-8C, 8-Channel Network Video Recorder, Record 8CH 4K@30fps, Live View/Playback 1CH 4K@30fps, Supports up to 1x8TB Hard Drive(Not Included)

111000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Support 8 Cameras and up to 4K Resolution
Remote Access via Mobile App, Web Browser and VMS (Video Management Software)
Support Ultra 265/H.265/H.264 Video Formats
1 SATA HDD, up to 8TB for Each HDD
Mini 1U-sized, Rack-mountable

NVR101-8C, 8-Channel Network Video Recorder, Record 8CH 4K@30fps, Live View/Playback 1CH 4K@30fps, Supports up to 1x8TB Hard Drive(Not Included)

The network video recorder (NVR) can record videos from up to 8 cameras, and the storage can be expanded to 8TB in total . A variety of monitoring methods, including a web browser, monitoring sotware and mobile App, are available to manage your cameras and NVR easily, ideal for small and medium enterprises, education institutions, hotels and other applications.

Specifications
IP Video Input
8-ch
Decoding Format
H.265, H.264, MJPEG
HDMI Output
4K(3840x 2160)@30fps, 1920x 1080@60fps 1920x 1080@50fps, 1600x 1200@60fps, 1280x 1024@60fps, 1280x 720@60fps, 1024x 768@60fps
VGA Output
1920x 1080@60fps, 1920x 1080@50fps, 1600x 1200@60fps,1280x 1024@60fps, 1280x 720@60fps, 1024x 768@60fps
Audio Input
N/A
Audio Output
1-ch, 3.5mm
Incoming Bandwidth
64Mbps
Decoding Capability
1x 4K@30fps, 4x 5MP@25fps, 4x 4MP@25fps, 4x 3MP@25fps, 4x 1080p@30fps, 8x 720p@30fps
Outgoing Bandwidth
48Mbps
LiveView/Playback Resolution
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
SATA
1x SATA Interfaces
Capacity
Up to 8TB for Each Disk
Network Interface
1 RJ45 10M/100M Self-adaptive Ethernet Interface
USB Interface
Rear Panel: 2x USB2.0
Working Environment
-10 to 55°C (14 to 131°F)
Power Consumption
≤ 5W (without HDD)
Power Supply
12V DC
Dimensions (HxWxD)
1.8"x 10.2"x 9.4"(46x 260x 240mm)
Quality Certifications
