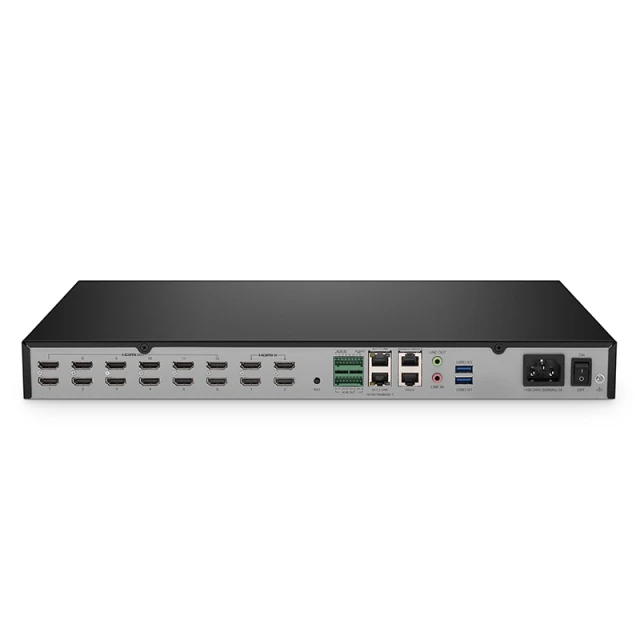

NVD3512-12M, 12-Channel 12MP Network Video Decoder, H.265, 12x HDMI Output & 4x HDMI Input

NVD3512-12M, 12-Channel 12MP Network Video Decoder, H.265, 12x HDMI Output & 4x HDMI Input

2390000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

H.265, H.264, MPEG4 Image Compression Formats
Max.decoding Resolution of 12MP, up to 16x1080P@30Hz Decoding Capability for Each Channel
Supports Window Opening, Roaming and Picture-in-Picture
Up to 36 Windows are Allowed for Each Output Channel
Supports Decoding Audio in G.711A and G.711U Formats
Provide 12 HDMI Output Interfaces and 4 HDMI Input Interfaces
Supports Decoding Streams of Other Manufacturers

NVD3512-12M, 12-Channel 12MP Network Video Decoder, H.265, 12x HDMI Output & 4x HDMI Input

Delivering high-quality and detailed images, the network decoder is equipped with up to 12-CH network cameras and a maximum network camera resolution of 12-Megapixels. It supports decode options of H.265 12MP @20 fps and 4K/1080p/720p @30 fps, perfect for small to medium scale deployments where display and control are required.

Specifications
IP Video Input
4x HDMI
Video Stream Format
H.265, H.264, MPEG4
HDMI Input (Max)
3840x 2160 (4K) @30HZ
HDMI Output (Max)
3840x 2160 (4K) @30HZ
Audio Input
2-ch (Reserved)
Audio Output
2-ch (Reserved)
Alarm Input
4-ch (Reserved)
Alarm Output
4-ch (Reserved)
Serial Interface
1x RS-232, 1x RS485
Network Interface
2x RJ-45, 10M/100M/1000M Adaptive Ethernet Interfaces
USB Interface
2x USB3.0
Decoding Capability
16x 12MP@20Hz; 16x 4K@30Hz; 64x 1080P@30Hz; 144x 720P@30Hz
Weight
3.95kg
Power Supply
100V ~ 240V AC; 50Hz/60Hz
Dimensions(HxW×D)
1.7"x17.3"x13.3" (44mmx440mmx339mm)
Warranty
2 Years
Quality Certifications
