NVR202-16C, 16-Channel Network Video Recorder, Record 16CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Pre-installed 4TB Hard Drive

NVR202-16C, 16-Channel Network Video Recorder, Record 16CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Pre-installed 4TB Hard Drive

296000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Support 16 Cameras and up to 4K Resolution
Remote Access via Mobile App, Web Browser and VMS (Video Management Software)
Pre-Installed 4TB Purple Hard Drive
ONVIF® Profile S Conformant

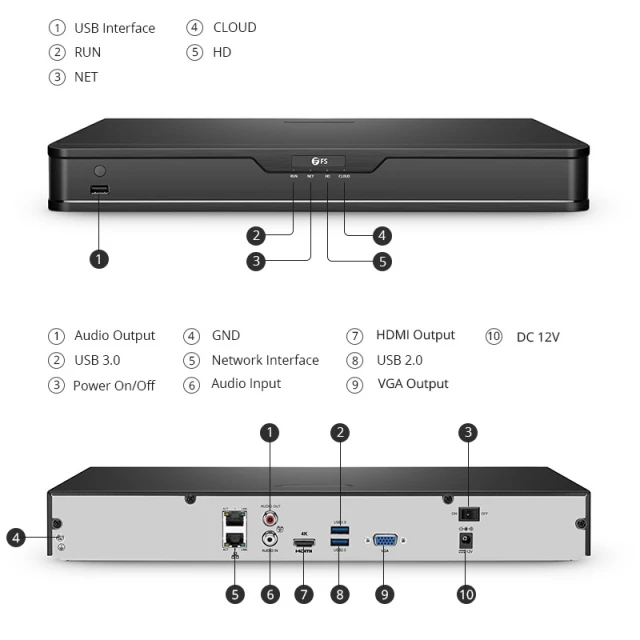

1U-sized, Rack-mountable

NVR202-16C, 16-Channel Network Video Recorder, Record 16CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Pre-installed 4TB Hard Drive

Equipped with a 4TB hard disk drive (HDD), the network video recorder (NVR) can record videos from up to 16 cameras, and the storage can be expanded to 12TB in total. A variety of monitoring methods, including a web browser, monitoring software and mobile App, are available to manage your cameras and NVR easily, ideal for small and medium enterprises, education institutions, hotels and other applications. It features an open architecture that supports for multi-user access and is compatible with ONVIF S protocol, enabling interoperability with IP cameras.

Specifications
IP Video Input
16-Channel
Decoding Format
H.265/H.264
HDMI Output
4K(3840x2160@30fps),1920x1080@60fps,
1920x1080@50fps,1600x1200@60fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps
VGA Output
1920x1080@60fps,1920x1080@50fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps
Audio Input
1-ch, RCA
Audio Output
1-ch, RCA
Incoming Bandwidth
160Mbps
Decoding Capability
2x4K@30fps,3x5MP@30fps,
4x4MP@30fps,5x3MP@30fps,
8x1080p@30fps,16x720p@30fps
Outgoing Bandwidth
64Mbps
LiveView/Playback Resolution
8MP/6MP/5MP/4MP/3MP/1080P/
960P/720P/D1/2CIF/CIF
SATA
2x SATA interfaces
Capacity
4TB (pre-installed Purple HDD), up to 6TB for each HDD
Network Interface
2x 10M/100M/1000M port
USB Interface
1x USB2.0, 1x USB3.0(Rear panel), 1x USB2.0(Front panel)
Power Consumption
≤ 15W (without HDD)
Power Supply
DC 12V
Interoperability
ONVIF® Profile S Specification at onvif.org
Protocols
P2P, UPnP, NTP, DHCP, PPPoE
Operating Temperature
-10 to 55°C (14 to 131°F)
Dimensions (HxWxD)
2.1"x 15.0"x 12.4" (53x380x315mm)
Quality Certifications
