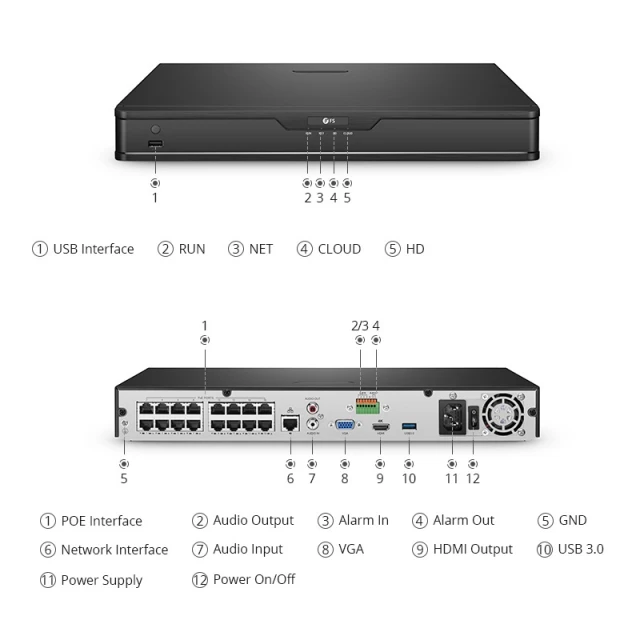

NVR202-16C-16P, 16-Channel 16-Port PoE Network Video Recorder, Record 16CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Pre-Installed 4TB Hard Drive

NVR202-16C-16P, 16-Channel 16-Port PoE Network Video Recorder, Record 16CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Pre-Installed 4TB Hard Drive

385000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Support 16 Cameras and up to 4K Resolution
Remote Access via Mobile App, Web Browser and VMS (Video Management Software)
Pre-Installed 4TB Purple Hard Drive
ONVIF® Profile S Conformant
1U-sized, Rack-mountable

NVR202-16C-16P, 16-Channel 16-Port PoE Network Video Recorder, Record 16CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Pre-Installed 4TB Hard Drive

The network video recorder (NVR) can record videos from up to 16 cameras, and the storage can be expanded to 20TB in total for its two-bay SATA 3.5”HDD interface. A variety of monitoring methods, including a web browser, monitoring software and mobile App, are available to manage your cameras and NVR easily, ideal for small and medium enterprises, education institutions, hotels and other applications. It features an open architecture that supports for multi-user access and is compatible with ONVIF S protocol, enabling interoperability with IP cameras.

Specifications
IP Video Input
16-Channel
Decoding Format
H.265/H.264
HDMI Output
4K(3840x2160@30fps),1920x1080@60fps,
1920x1080@50fps,1600x1200@60fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps
VGA Output
1920x1080@60fps,1920x1080@50fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps
Audio Input
1-ch, RCA
Audio Output
1-ch, RCA
Incoming Bandwidth
160Mbps
Decoding Capability
2x4K@30fps,4x4MP@30fps,
5x3MP@30fps,8x1080P@30fps,
16x720P@30fps
Outgoing Bandwidth
64Mbps
LiveView/Playback Resolution
8MP/6MP/5MP/4MP/3MP/1080P/
960P/720P/D1/2CIF/CIF
SATA
2x SATA interfaces
Capacity
4TB (pre-installed Purple HDD), up to 10TB for each HDD
Network Interface
1x 10M/100M/1000M port,16x 10M/100M PoE port (IEEE802.3af/at)
USB Interface
1x USB 2.0(Front panel), 1x USB 3.0(Rear panel)
PoE Power Budget
Max 30W for single port Max 240W in total
Power Supply
AC 100-240V
Interoperability
ONVIF® Profile S Specification at onvif.org
Protocols
P2P, UPnP, NTP, DHCP, PPPoE
Dimensions (HxWxD)
2.1"x 14.9"x 12.4" (53x380x315mm)
Operating Temperature
-10 to 55°C (14 to 131°F)
Quality Certifications

Image supplémentaire

Produits similaires

VMA-3000C-48, 8MP 8CH Advanced Intelligent Edge Computing Server

VMA-3000C-48, 8MP 8CH Advanced Intelligent Edge Computing Server

2023000 CFA
Voir le produit
IPC104-2M-D, Full HD 2MP Dome Network Camera with Build-in Mic, 98ft Night Vision, IP67 & IK10 PoE Network Camera with Varifocal 2.8-12mm Lens

IPC104-2M-D, Full HD 2MP Dome Network Camera with Build-in Mic, 98ft Night Vision, IP67 & IK10 PoE Network Camera with Varifocal 2.8-12mm Lens

103000 CFA
Voir le produit
IPC204-2M-B, Full HD 2MP Bullet Network Camera with Build-in Mic, 164ft Night Vision, Smart Behavior Detection, IP67 Weatherproof PoE Network Camera with Varifocal 2.8-12mm Lens

IPC204-2M-B, Full HD 2MP Bullet Network Camera with Build-in Mic, 164ft Night Vision, Smart Behavior Detection, IP67 Weatherproof PoE Network Camera with Varifocal 2.8-12mm Lens

104000 CFA
Voir le produit

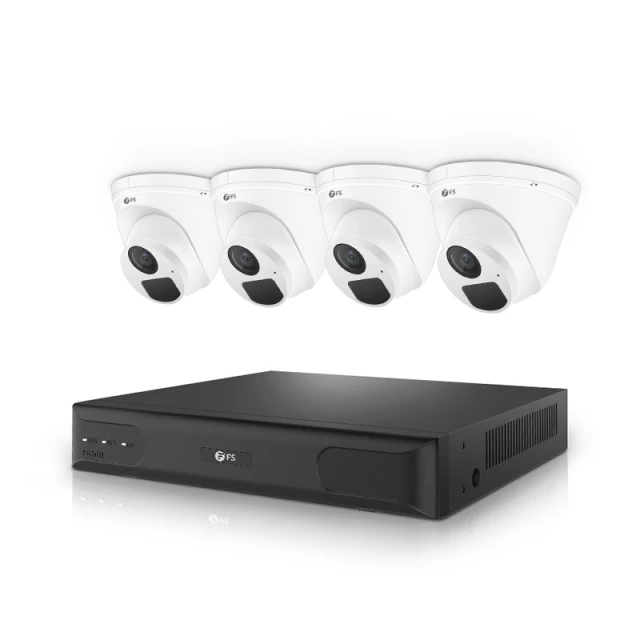

NVR812-TP-K, 8 Channel PoE Kit with 4Pcs 2MP Turret Cameras (Network Cables and HDD Not Included)
