3-Phase 32A/400V Switched Metered Outlet PDU, (21) C13 & (3) C19 Outlets, IEC309 32A 3P + N + PE Plug, 10ft Cord, 0U Vertical

3-Phase 32A/400V Switched Metered Outlet PDU, (21) C13 & (3) C19 Outlets, IEC309 32A 3P + N + PE Plug, 10ft Cord, 0U Vertical

1500000 CFA

Product Highlights

User-defined Alarm Thresholds Reduce Risk With Real-time Monitoring to Avoid Circuit Overload
1 IP is Required to Access Up to 32 PDUs (Primary + Secondary) in A Single Cascade Group
Plan Capacity and Balance Loads with ± 1% Metering Accuracy (Amps, Volts, Kw, Kwh)
100Mbps Controller is Compatible with Data Center Network Switches Being Deployed
Replace the Controller And Display Module Without Having To Power Down The Rack

3-Phase 32A/400V Switched Metered Outlet PDU, 21 IEC320 C13 & 3 C19 Outlets, IEC309 32A 3P + N + PE Plug, 10ft Cord, 0U Vertical

A Switched Metered Outlet PDU provides Local/Remote real-time monitoring capability and avoids potential overloads with an LCD hot swapping display while offering reliable, rack-mount, multi-outlet power distribution from any protected UPS, generator, or mains input power source. Users can access, configure, and control the PDU's outlet metering through a secure Web, SNMP, command line interface, or Telnet interface. An optional T/H sensor will be used to set notification forms to prevent business disruption.
Switched PDU models are also available that can provide remote on/off outlet switching functionality from anywhere in the world to drive green data center initiatives to save energy and money.
The 0U rack PDU mounts vertically using the included toolless mounting buttons or the included brackets. Recommended for data centers, server rooms, and network closets, this 0U vertical PDU provides advanced network control and remote power monitoring.

Specifications
PDU Type
Switched Metered Outlet
Phase
3-Phase
Input Plug Type
IEC309 32A 3P + N + PE
Output Socket Type
21 IEC320 C13 & 3 C19
Input Voltage
125V
Output Voltage
125V
Input Current Limits
20A
Rating Current
32A
Load Capacity
17.6kW
Frequency Compatibility
50/60Hz
Cord Length
10ft (3m)
Cord Gauge
12AWG
Ammeter
LCD Hot Swapping
Circuit Breaker
1, Hydraulic

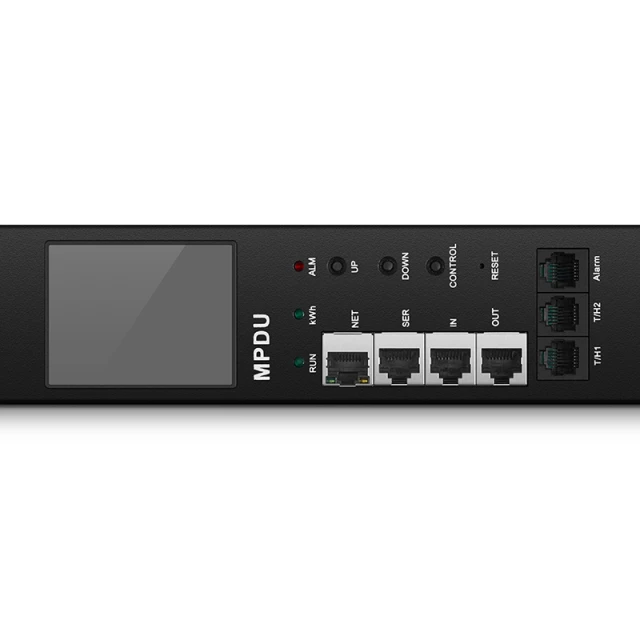

Front Panel LCD Display
Digital meter reports PDU output current in amps, voltage, capacity, electric energy, temperature and humidity, and IP address information
Network Compatibility
10/100 Ethernet & Gigabit Ethernet Standard
SNMP Compatibility
Supporting Web, Telnet, SSL, SNMPv1/v2c/v3, NTP, SMTP for local and remote management
Material of Construction
Sheet Metal
No. of Rack Spaces
Vertical (0U)
Dimensions (HxWxD)
75.79''x2.21''x2.05'' (1925x56x52mm)
Toolless Mounting Peg
Unmovable
Rack Mount Brackets
Removable
Current Measurement Accuracy (Amps)
±1%
Voltage Measurement Accuracy (Volts)
±1%
Power Measurement Accuracy (Watts)
±1%
Storage Temperature
-15 to 60°C (5°F ~ 140°F)
Operating Temperature
0°C to 45°C (32°F to 113°F)
Relative Humidity
5~95%
Quality Certifications
