N8550-24CD8D, 24-Port Ethernet L3 Data Center Switch, 24 x 200Gb QSFP56, with 8 x 400Gb QSFP-DD Uplinks, PicOS®, Broadcom Chip

7300000 CFA

5-Year Warranty

30-Day Returns

30-Day Exchange

Product Highlights

Broadcom BCM56780 Trident4 Chip, 400/200/100GbE Speeds

PicOS® Supports MLAG, RoCEv2, PFC, ECN and DLB

8.0 Tbps Throughput with Full Layer 2/Layer 3 Performance

Security Features: ACL, RADIUS, TACACS+ & DHCP Snooping

1+1 Hot-swappable Power Supplies, 5+1 Hot-swappable Smart Fans

Use Case: Cloud Edge Data Center

N8550-24CD8D, 24-Port L3 Data Center Switch, 24 x 200Gb QSFP56, with 8 x 400Gb QSFP-DD Uplinks, PicOS®, Broadcom Chip

N8550-24CD8D is a new generation of high-performance, high-density 400GE/200GE Ethernet switch, it offers multiple connectivity options of 100/200/400G ports. Built with a reliable Broadcom chipset, and equipped with redundant pluggable power supplies and fans, the switch can be used in the core and spine networking of the new generation data center. The switch supports RoCEv2 network, based on Priority-based Flow Control (PFC), Explicit Congestion Notification (ECN) and Dynamic Load Balancing (DLB), which ensures low latency and lossless RDMA applications and high-speed computing services.
The switch runs on the PicOS® operating system with perpetual license, supporting a comprehensive suite of L2/L3 capabilities, including essential network functions like MLAG, BGP, and OSPF. Additionally, the switch has built-in security features for robust network protection, and offers five years of free hardware and software technical support.

Specifications

Ports

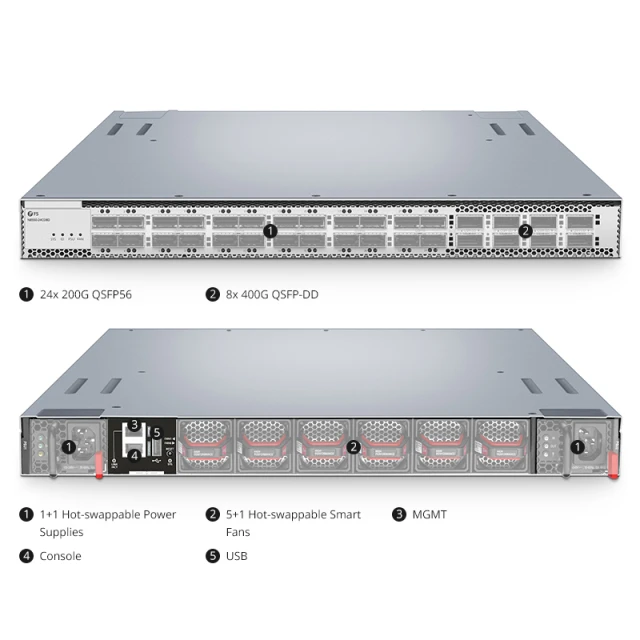

24x 200G QSFP56, 8x 400G QSFP-DD

Operating System

PicOS®

Switch Chip

BCM56780 Trident 4

Switching Capacity

8 Tbps

CPU

Intel® Xeon® Processor D-1627 4-core 2.9GHz

Forwarding Rate

5350 Mpps

Power Supplies

2 (1+1 Redundancy) Hot-swappable, AC

Jumbo Frame

Fans

6 (5+1 Redundancy) Hot-swappable, Front-to-Back

MAC Address

98k

Dimensions (HxWxD)

1.73"×17.32"× 25.98"(44× 440× 660mm)

Number of VLANs

Weight

33.06 lbs (15kg)

SDRAM

16GB

Input Voltage

100-240VAC, 50-60Hz

Flash Memory

240GB

Input Current

10A (MAX)

MTBF

41.1 Years

Max. Power Consumption

768W

Management Methods

SNMPv1/v2c/v3, Telnet, SSH 2.0, SSL, FTP

Operating Temperature

0°C to 40 °C (32°F to 104°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Software Spotlights

Visibility and Analytics

Support Test Automation with PicOS-V

Support SNMP, RMON (1, 2, 4, 9)

Support Syslog management

Support Netconf configuration and automation tools

Support sFLOW

Support Zero Touch Provisioning (ZTP)

Support port mirror (SPAN)

Support Encapsulated Remote SPAN (ERSPAN) and gRPC protocols

Support Openflow, CrossFlow

Layer 2 Forwarding and Protocols Supported

Support MLAG

Support RoCEv2 (RDMA over Converged Ethernet version 2)

Support PFC (Priority Flow Control)

Support ECN (Explicit Congestion Notification)

Support DLB (Dynamic Load Balancing)

Support STP, RSTP/MSTP/PVST

Support VLAN-IEEE802.1Q VLAN trunk

Support routed interface

Support Link Aggregation and LACP (Link Aggregation Control Protocol)

Support LLDP (802.1AB Link Layer Discovery Protocol）

Support VLAN registration (GVRP/MVRP)

Layer 3 Routing Features

Support static routing

Support RIP, RIPng

Support OSPFv2, OSPFv3

Support BGP4/BGP4+

Support Equal-Cost Multipath Routing (ECMP)

Support PBR (Policy-Based Routing)

Support Virtual Router Redundancy Protocol (VRRP)

Support DHCP snooping/Relay

Support IGMP v1/v2/v3

Support PIM SM/SSM

Support BFD
