NVR724-256C, 256-Channel Network Video Recorder, Record 256CH 4K@30fps, Live View/Playback 5CH 4K@30fps, Supports up to 24x10TB Hard Drive(Not Included)

NVR724-256C, 256-Channel Network Video Recorder, Record 256CH 4K@30fps, Live View/Playback 5CH 4K@30fps, Supports up to 24x10TB Hard Drive(Not Included)

11900000 CFA

Product Highlights

Support 256 Cameras and up to 12MP Resolution
Remote Access via Mobile App, Web Browser and VMS (Video Management Software)
ONVIF® Profile S Conformant
HDMI1, HDMI2 and VGA Independent Outputs Provided
Support Ultra 265/H.265/H.264 Video Formats 0/1/5/6/10/50/60 Configuration

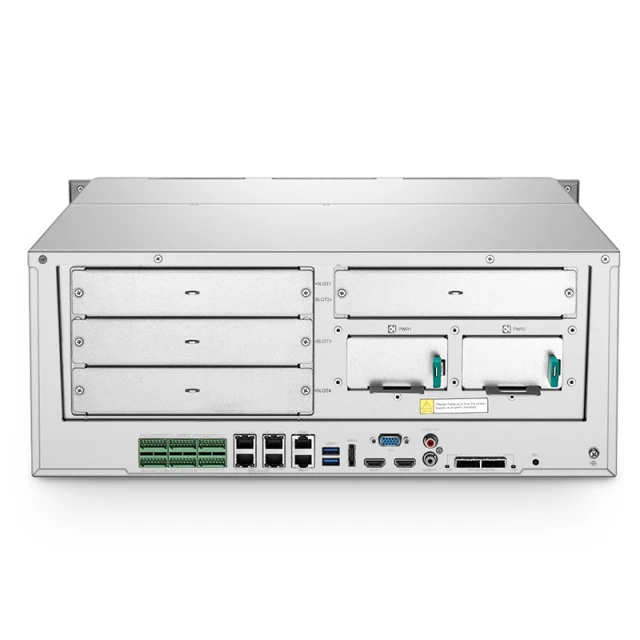

NVR724-256C, 256-Channel Network Video Recorder, Record 256CH 4K@30fps, Live View/Playback 5CH 4K@30fps, Supports up to 24x 10TB Hard Drive (Not Included)

The network video recorder (NVR) can record videos from up to 256 cameras, and the storage can be expanded to 240TB in total for its 24-bay SATA 3.5" HDD interface. A variety of monitoring methods, including a web browser, monitoring software and mobile App, are available to manage your cameras and NVR easily, ideal for small and medium enterprises, education institutions, hotels and other applications. It features an open architecture that supports for multi-user access, enabling interoperability with IP cameras.

Specifications
IP Video Input
256-Channel
Decoding Format
Ultra 265, H.265, H.264
HDMI Output
4K(3840x2160@30fps),1920x1080@60fps,
1920x1080@50fps,1600x1200@60fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps
VGA Output
1920x1080@60fps,1920x1080@50fps,
1280x1024@60fps,1280x720@60fps,
1024x768@60fps
Audio Input
1-ch, RCA
Audio Output
1-ch, RCA
Incoming Bandwidth
768Mbps
Decoding Capability
5x 4K@30,20x 1080P@30,
24x 1080P@25,40x 960P@25,
45x 720P@30,54x 720P@25,96x D1
Outgoing Bandwidth
768Mbps
LiveView/Playback Resolution
12MP/8MP/6MP/5MP/4MP/3MP/
1080p/960p/720p/D1/2CIF/CIF
SATA
24x SATA interfaces
Capacity
240TB (not included), up to 10TB for each HDD
Network Interface
4 RJ-45 10M/100M/1000M Adaptive Ethernet Interface
USB Interface
2x USB 2.0(Front panel), 2x USB 3.0(Rear panel)
Power Consumption
≤ 70W (without HDD)
Power Supply
AC 100-240V
Power Output
12V
Interoperability
ONVIF® Profile S Specification at onvif.org
Dimensions (HxWxD)
6.9"× 21.0 "× 19.1" (175.5× 533× 484.6mm)
Operating Temperature
-10 to 55°C (14 to 131°F)
Quality Certifications
