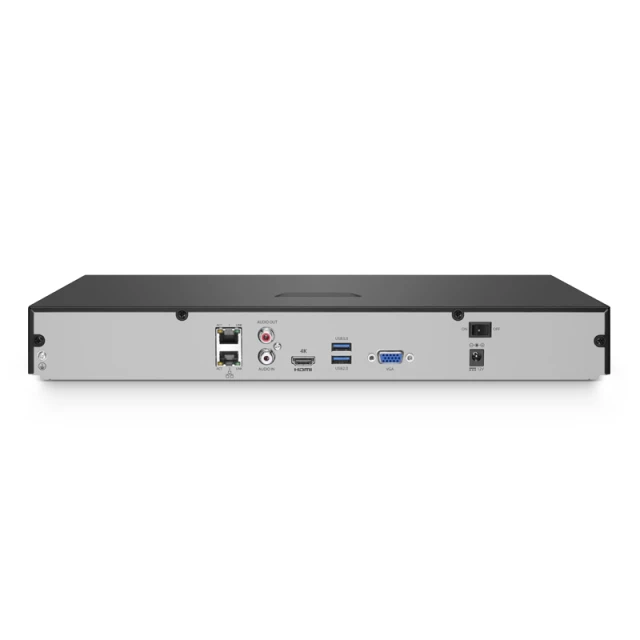

NVR102-9C, 9-Channel Network Video Recorder, Record 9CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Supports up to 2x8TB Hard Drive(Not Included)

NVR102-9C, 9-Channel Network Video Recorder, Record 9CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Supports up to 2x8TB Hard Drive(Not Included)

217000 CFA


 2-Year Warranty
30-Day Returns
30-Day Exchange


Product Highlights

Support 9 Cameras and up to 4K Resolution
Remote Access via Mobile App, Web Browser and VMS (Video Management Software)
Support Ultra 265/H.265/H.264 Video Formats
2 SATA HDD, up to 8TB for Each HDD
1U-sized, Rack-mountable

NVR102-9C, 9-Channel Network Video Recorder, Record 9CH 4K@30fps, Live View/Playback 2CH 4K@30fps, Supports up to 2x8TB Hard Drive(Not Included)

The network video recorder (NVR) can record videos from up to 9 cameras, and the storage can be expanded to 16TB in total . A variety of monitoring methods, including a web browser, monitoring sotware and mobile App, are available to manage your cameras and NVR easily, ideal for small and medium enterprises, education institutions, hotels and other applications.

Specifications
IP Video Input
9-ch
Decoding Format
H.265, H.264, MJPEG
HDMI Output
4K (3840x 2160)@ 30fps, 1920x 1080@ 60fps, 1920x 1080@ 50fps, 1600x 1200@ 60fps, 1280x 1024@ 60fps, 1280x 720@ 60fps, 1024x 768@ 60fps
VGA Output
1920x 1080p@60fps, 1920x 1080p@50fps, 1280x 1024@60fps, 1280x 720@60fps, 1024x 768@60fps
Audio Input
1-ch, RCA
Audio Output
1-ch, RCA
Incoming Bandwidth
160Mbps
Decoding Capability
2x 4K@30fps, 3x 5MP@30fps, 4x 4MP@30fps, 5x 3MP@30fps, 8x 1080p@30fps, 9x 1080p@25fps
Outgoing Bandwidth
64Mbps
LiveView/Playback Resolution
8MP/6MP/5MP/4MP/3MP/1080p/960p/720P/D1/2CIF/CIF
SATA
2x SATA Interfaces
Capacity
Up to 8TB for Each Disk
Network Interface
2 RJ-45 10M/100M/1000M Self-adaptive Ethernet Interface
USB Interface
Rear Panel: 1x USB2.0, 1x USB3.0 Front Panel: 1x USB2.0
Working Environment
-10 to 55°C (14 to 131°F)
Power Consumption
≤ 15W (Without HDD)
Power Supply
12V DC
Dimensions (HxWxD)
2.1" x 15"x 12.4"(53x 380x 315mm)
Quality Certifications

Image supplémentaire

Produits similaires

CA-R004, Pole Mount Bracket For Bullet Cameras

CA-R004, Pole Mount Bracket For Bullet Cameras

42000 CFA
Voir le produit
IPC304-8M-B, Ultra HD 8MP Bullet Network Camera, 164ft Night Vision, Smart Behavior Detection, IP67 & IK10 PoE Network Camera with Varifocal 2.8-12mm Lens

IPC304-8M-B, Ultra HD 8MP Bullet Network Camera, 164ft Night Vision, Smart Behavior Detection, IP67 & IK10 PoE Network Camera with Varifocal 2.8-12mm Lens

189000 CFA
Voir le produit

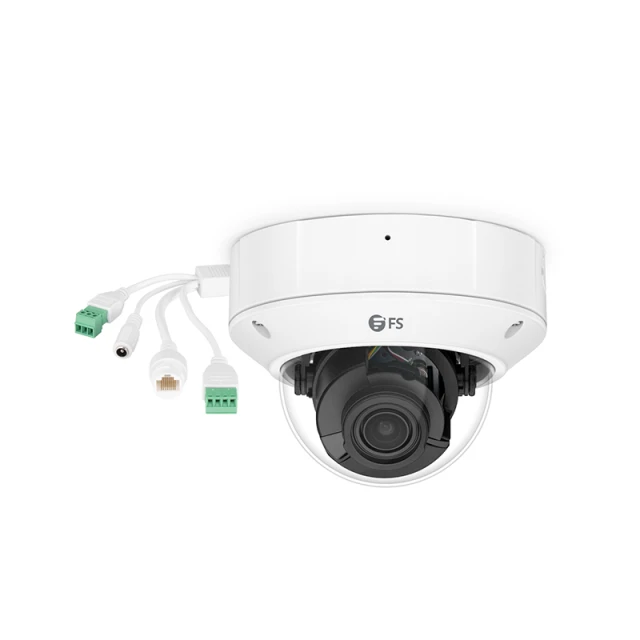

IPC305-2M-D, 2MP Dome PoE Network Camera with Built-in Mic, 131ft Smart Infrared Night Vision, Smart Intrusion Prevention, IP67 & IK10 Rating, 2.7 ~ 13.5mm Varifocal Lens
