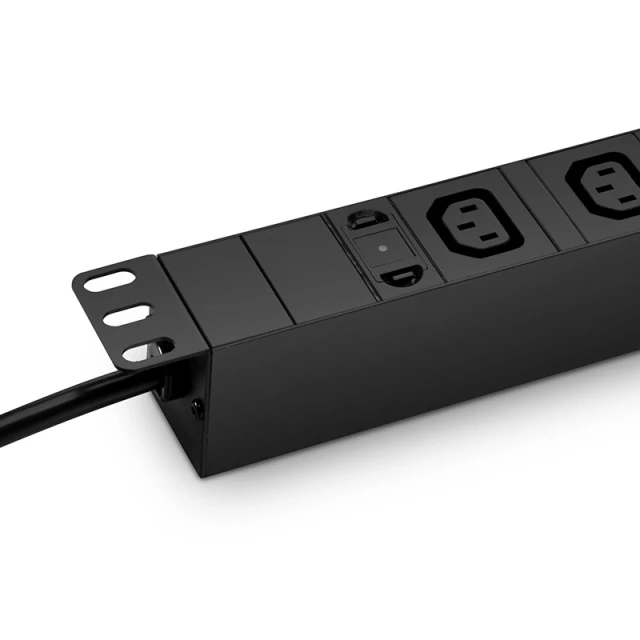

1.2kW Single-Phase 10A/120V Basic PDU, (8) C13 Outlets, IEC320 C14 Plug, 10ft Cord, 1U Rack-Mount

1.2kW Single-Phase 10A/120V Basic PDU, (8) C13 Outlets, IEC320 C14 Plug, 10ft Cord, 1U Rack-Mount

122000 CFA

Product Highlights

Hot-swappable Indicator Light for Quick Identification and Easy Replacement
The Black Aluminum Alloy Housing is More Wear-resistant and Extends the Life of the PDU
IEC320 C14 Plug, 10ft (3m) Power Cord
8 Total Outlets (IEC320 C13)
1.2kW Single Phase 10A/120V Basic PDU

Single-Phase 10A/120V Basic PDU, 8 IEC320 C13 Outlets, IEC320 C14 Plug, 10ft Cord, 1U Rack-Mount

A basic power distribution unit (PDU) is a reliable and cost-effective way to deliver power from a UPS system, generator, or utility source to servers, network/telecom equipment, enterprise level equipment, and other devices using a single input with multiple output outlets, designed for data centers, server rooms and network wiring closets in enterprise applications.

The Basic PDU Series includes models in 1U and 0U options, with versatile outlet arrangements on the front and/or back. It can be easily installed with mounting hardware included, and it supports a variety of mounting options, including horizontal or vertical mounting in EIA-standard 19-inch racks.

Specifications
PDU Type
Basic
Phase
Single-phase
Socket Type
8 IEC320 C13
Plug Type
IEC320 C14
Rating Current
10A
Rating Voltage
120V
Load Capacity
1.2kW
Frequency Compatibility
50/60Hz
Cord Length
10ft (3m)
Material of Construction
Aluminium Alloy
No. of Rack Spaces
1U
Dimensions (HxWxD)
19.0''x 1.75''x 1.75'' (483x 44.4x 44.4mm)
Mounting Method
Horizontal
Screws
Included
Quality Certifications
